Elecbee 3pcs CMT2300A SI4438/SI4432 433MHz Wireless Transceiver Module RF Transmitter Receiver

SKU: EB0042963

Favorites

Key Features

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

LoRa

Wi‑Fi Standard

802.11B/G/N

Model

CMT2300A

Show Similar Products >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

>>>Manual: Click here to open<<<

Introduction:

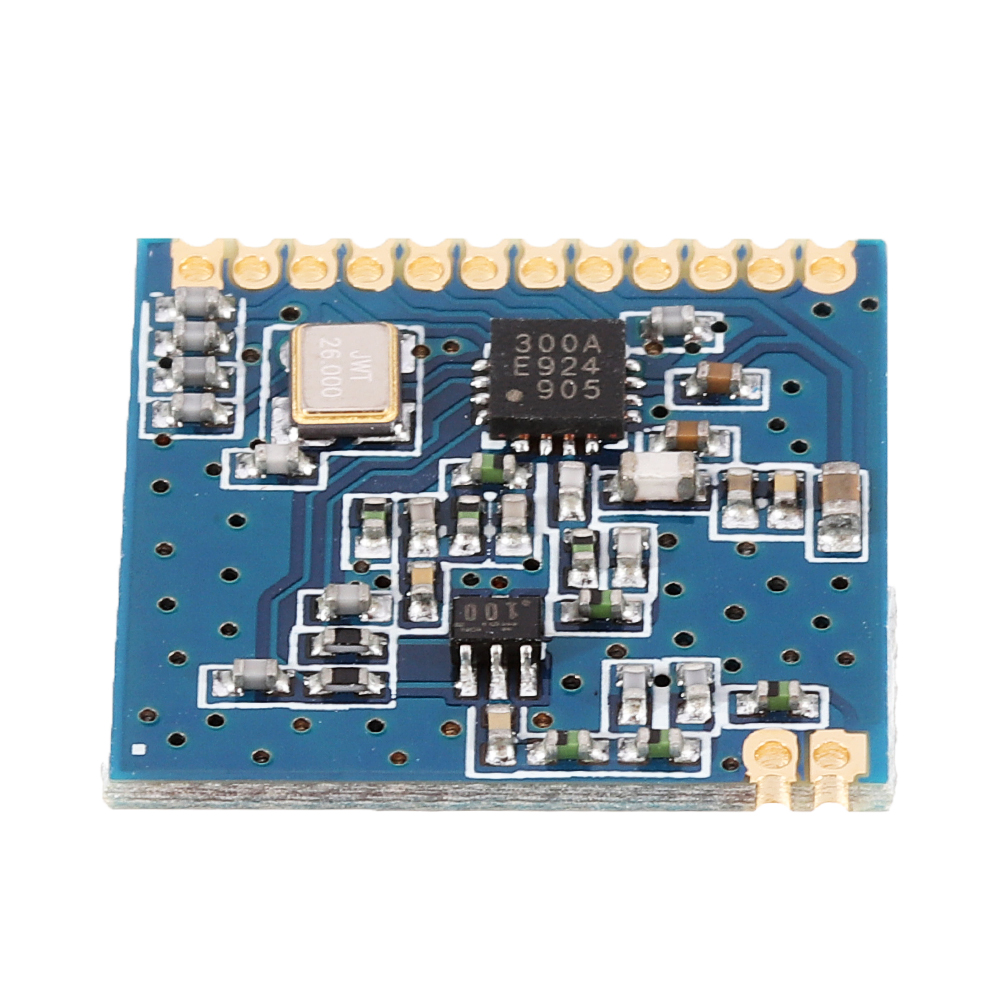

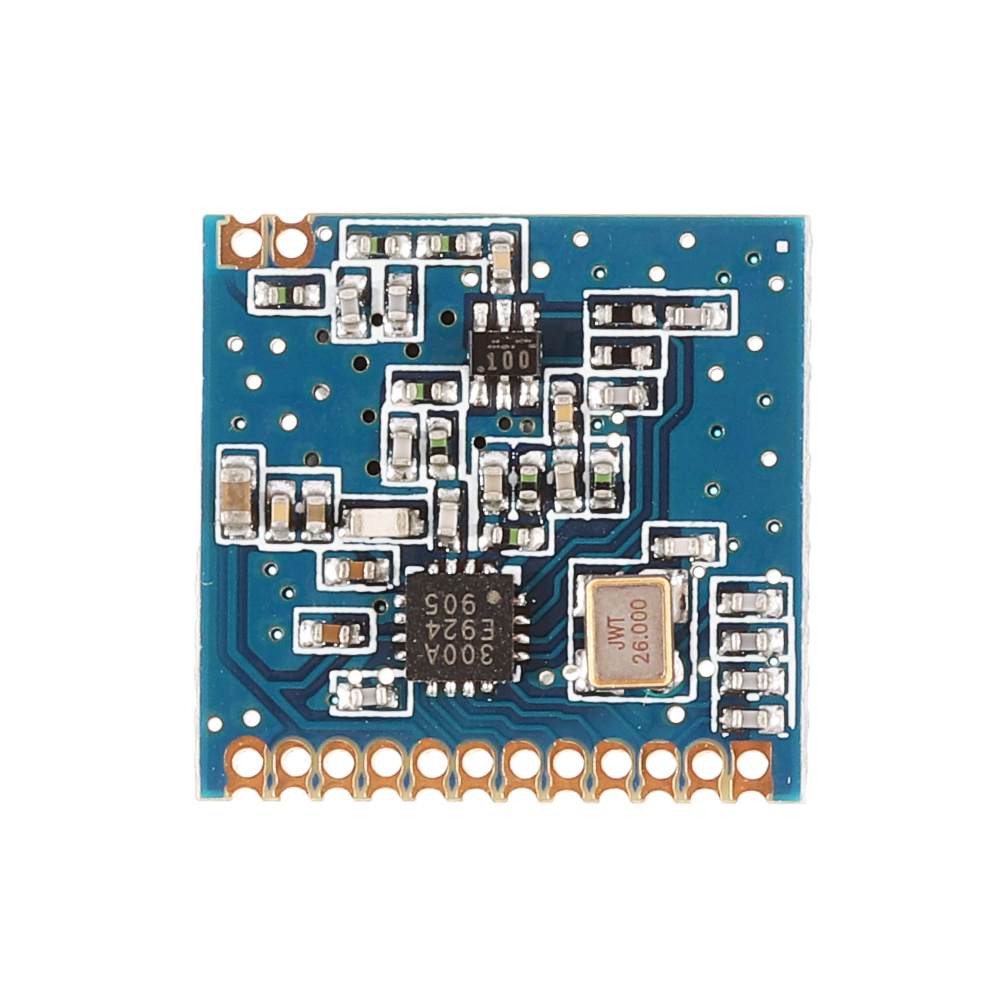

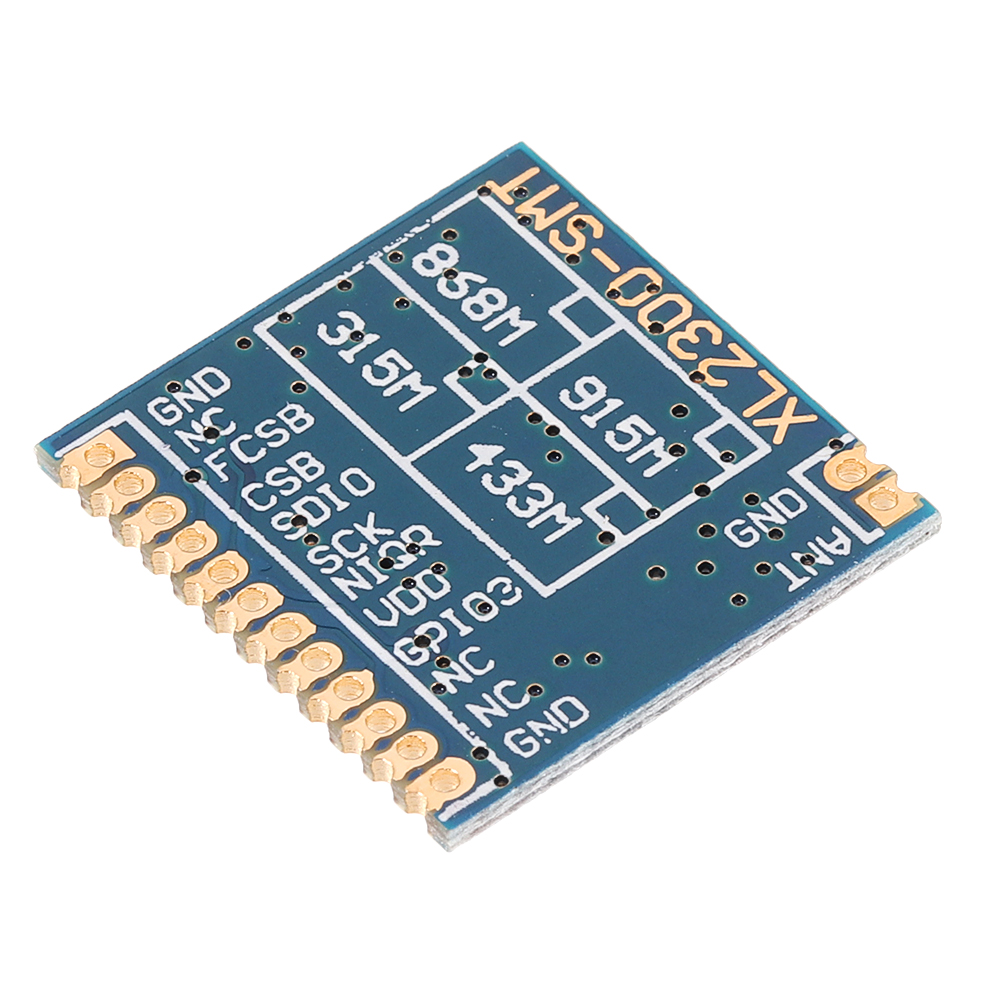

XL4432-SMT is a cost-effective 433M wireless transceiver module designed by wireless transceiver IC CMT2300A. It has multiple modulation modes. The module's transmit power, working frequency, modulation rate and other parameters can be configured by the microcontroller. Based on the SPI interface, it is convenient for various MCU connections. Can do a variety of wireless two-way data transmission and reception, the microcontroller through the SPI control wireless module to transmit, receive data or sleep, the wireless module receives data through the NIRQ port to notify the microcontroller to receive, the microcontroller reads the data received by the wireless module through the SPI interface.

Specifications:

Frequency band: 433/470MHZ 433/470MHZ

Module size: 16. 5 * 17mm, interface spacing 1. 27m

Output power: 20dBm/100m

Emission current: 85mA@100mw

Receive sensitivity: -124dBm@O. 5K

Receive current: 18mA

Modulation method: GFSK

Sleep current: 1uA

Data interface: four-wire SPI

Open distance: 1000m

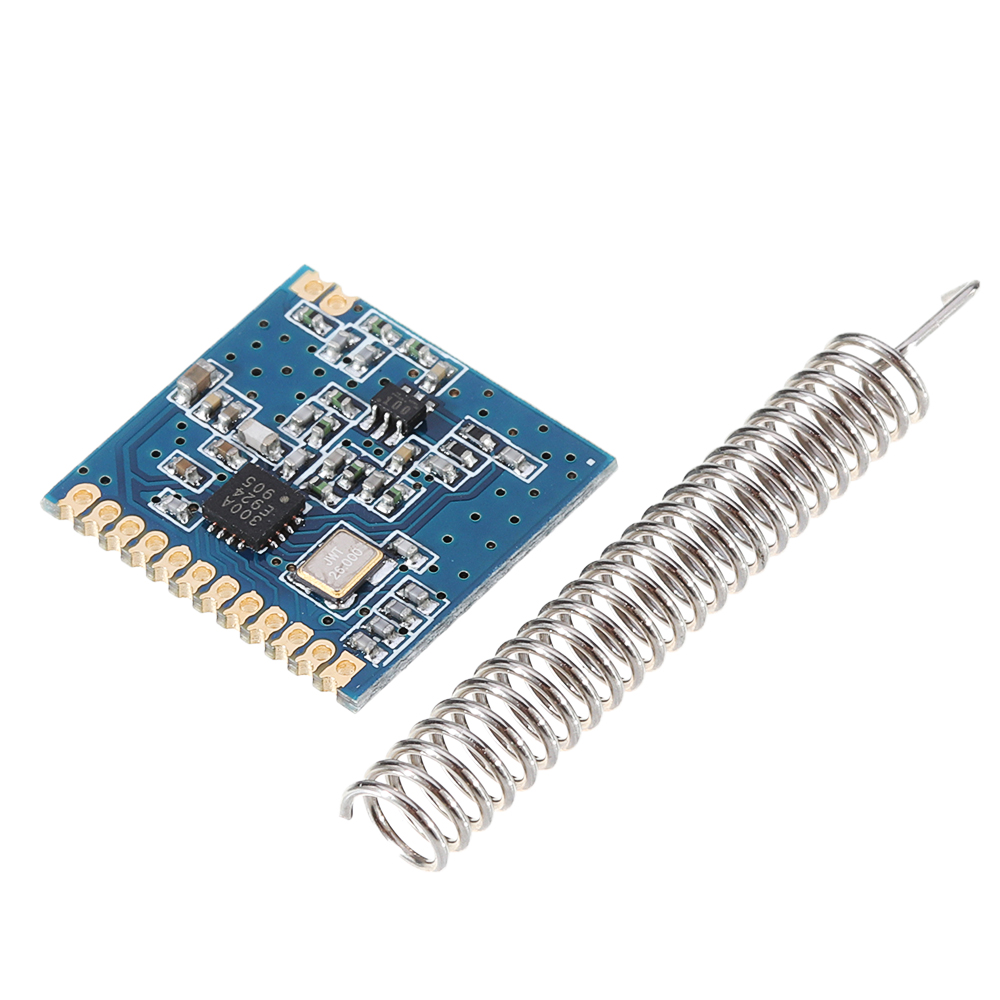

3 x CMT2300A SI4438/SI4432 433MHz LoRa Wireless Transceiver Module
