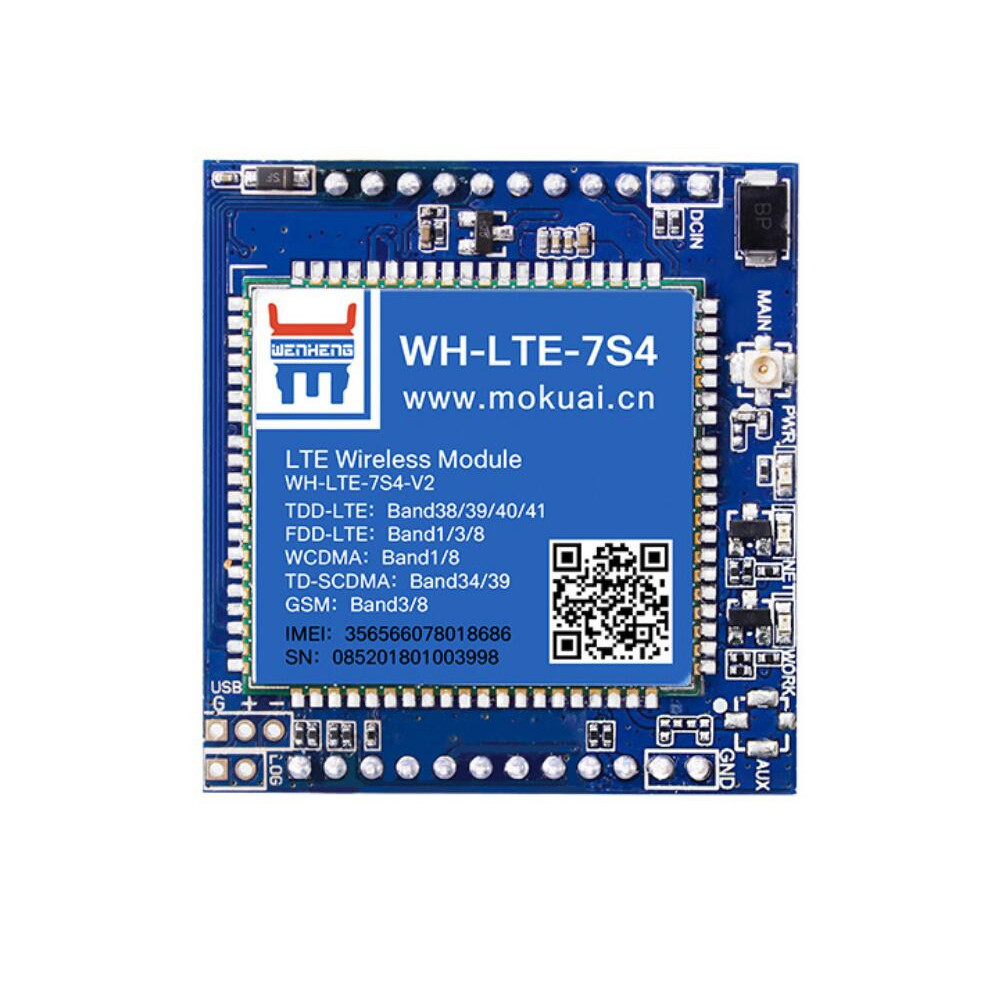

Elecbee 5 Mode 13 Frequency TTL to 4G Transparent Transmission 4G DTU Data Transmission Wireless Module Full Netcom V2

SKU: EB0042624

Favorites

Key Features

Project		Description
Product name	WH-LTE-7S4 V2	Support mobile 2G/3G/4G
		Support Unicom 2G/3G/4G
		Support Telecom 4G
Hardware interface	Package form	DIP 23pin
	power supply	3.4V~4.2V / 5~16V
	LED	Module status indicator function

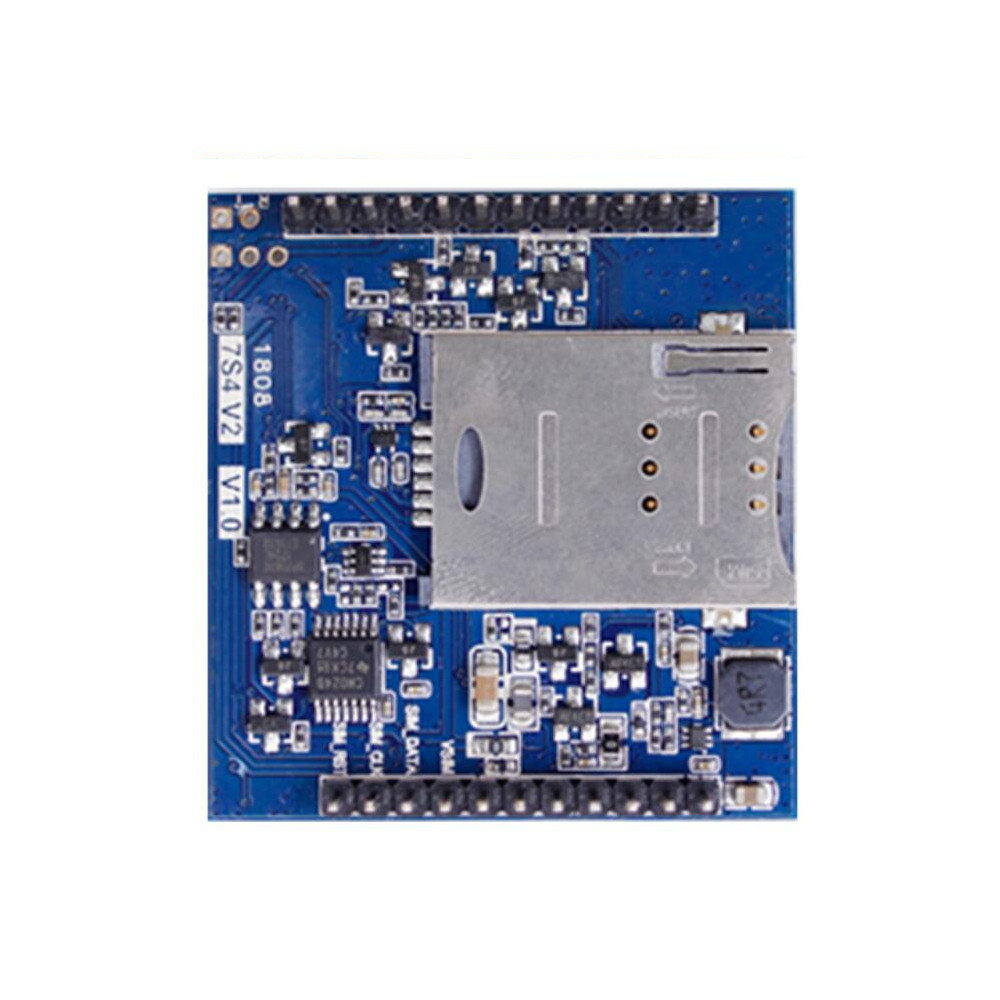

	SIM/USIMxa0	Standard 6-pin SIM card interface, 3V/1.8V SIM card
	USB protocol	USB 2.0 High speed
	antenna	IPEX
	UART	TTL (3.3V/5V)
	Baud rate (bps)	1,200,240,048,009,600,000,000,000,000,000,000,000,000,000,000,000
Dimensions	Size (mm)	44.4mm×41.8mm×12.5mm(including pin height)
Dimensions	Weight （g）	15g
Temperature and humidity range	Operating temperature	-20℃~ +70℃
	storage temperature	-40℃~ +85℃
	Working humidity	5%~95%
Specifications	TD-LTE3GPP R9 CAT4 downlink 150 Mbps, uplink 50 Mbps
	FDD-LTE	3GPP R9 CAT4 downlink 150 Mbps, uplink 50 Mbps
	WCDMA	HSPA+ Downstream Rate 21 Mbps Upstream Rate 5.76 Mbps
	TD-SCDMA	3GPP R9 downlink rate 2.8 Mbps uplink rate 2.2 Mbps
	GSM	Downstream rate 384 kbps Uplink rate 128 kbps
Frequency band	TD-LTE	Band 38/39/40/41
	FDD-LTE	Band 1/3/8
	WCDMA	Band 1/8
	TD-SCDMA	Band34/39
	GSM	Band 3/8
Power level	TD-LTE	+23dBm(Power class 3)
	Band 38/39/40/41	+23dBm(Power class 3)
	FDD-LTE	+23dBm(Power class 3)
	Band 1/3/8	+23dBm(Power class 3)
	WCDMA	+23dBm(Power class 3
	Band 1/8	+23dBm(Power class 3
	TD-SCDMA	+24dBm(Power class 2)
	Band34/39	+24dBm(Power class 2)
	GSMxa0Band 8	+33dBm(Power class 4)
	GSMxa0Band 3	+30dBm(Power class 1)
Software function	Data service	Support PPPD/RNDIS/ECM dialing
	SMS	Support PDU/TEXT SMS
	TCP/IP protocol	IPv4,IPv6,IPv4/IPv6xa0Double stack
	operating system	stand by windows/linux/Android
	data transmission	Support simple transparent transmission function, HTTPD function, UDC function
	Accessibility	Heartbeat package, registration package, socket protocol, FTP upgrade, base station positioning
	Parameter configuration	Serial, network and SMS AT command configuration
