Elecbee E90-DTU(230SL22) SX1262 Lora 230Mhz 22dBm 5Km Range 0.3k~15.6kbps RS232 RS485 Wireless Lora Modem

SKU: EB0042548

Favorites

Key Features

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth + LoRa + Cellular

Wi‑Fi Standard

802.11B/G/N

Model

E90

Ethernet

Support

Show Similar Products >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

Specification:

No	Item	Specification
1	Power supply	8V~28VDC, will burn over 28V, 12V or 24V is recommended
2	Ethernet specification	RJ45, support 10/100Mbps
3	Network protocol	IP, TCP/UDP, ARP, ICMP, IPV4

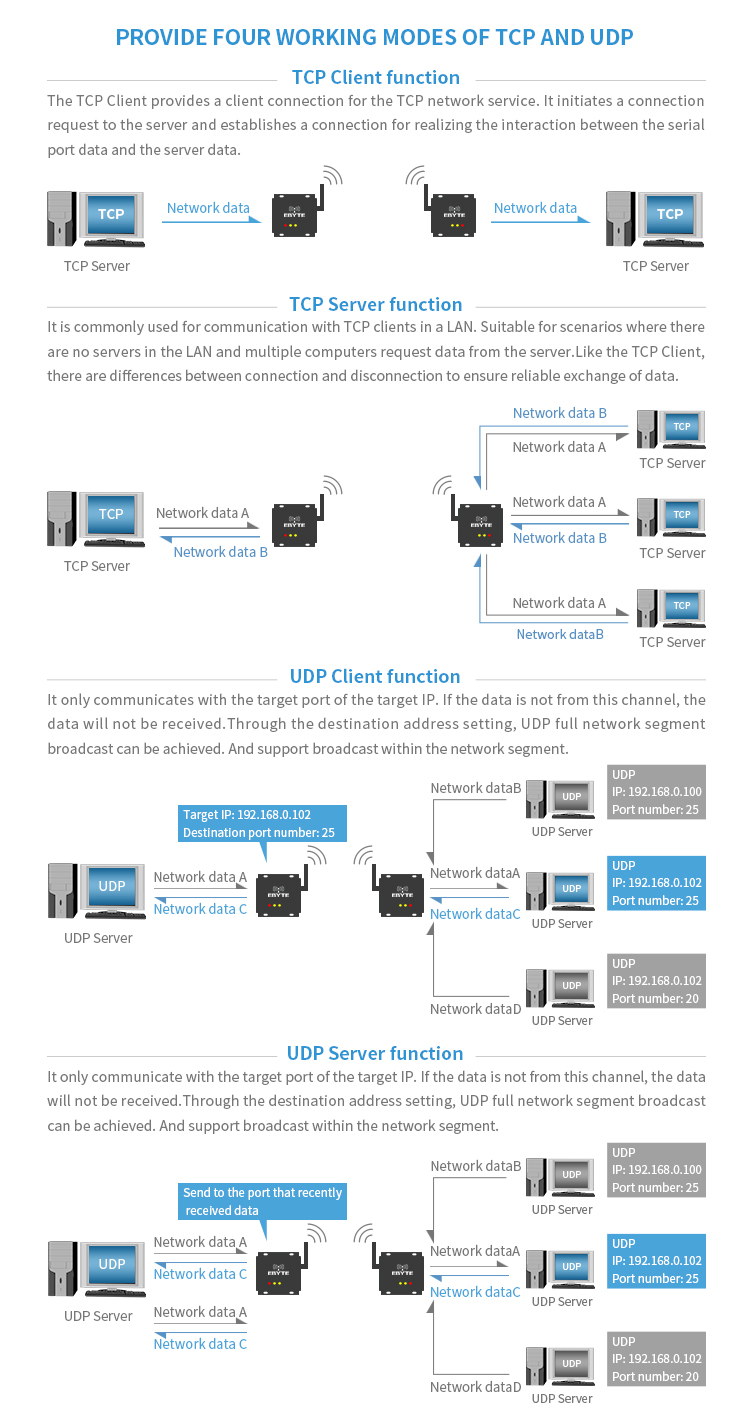

4	Simple transparent transmission	TCP Server, TCP Client, UDP Server, UDP Client, Cloud transparent transmission
5	TCP Server connection	Max of 6 channel TCP connection
6	IP acquisition method	Static IP, DHCP
7	DNS	Available
8	Configured by user	Web page configuration
9	Antenna interface	SMA
10	Operating temperature	-40 ~ +85℃
11	Operating humility	10% ~ 90%, Relative humidity, no condensation
12	Size	828425 (mm)
13	Average weight	130g±5g
14	Storage temperature	-40～+125℃
15	Frequency(MHz)	220.125~236.125, ISM band
16	TX current(mA)	270.2mA@12V, Instant power consumption
17	RX current(mA)	70.4mA@12V
18	Receiving sensitivity(dBm)	-148, Air data rate 0.3 kbps
19	Air data rate(bps)	0.3k~15.6k, Configured by user
20	Distance	10000m, In open and clear air, antenna gain 5dBi, at height of 2.5 m, air data rate 2.4 kbps
21	Transmission length	240 Btye, Can be set as 32/64/128/240 bytes each packet
22	Receiving length	1000 Btye

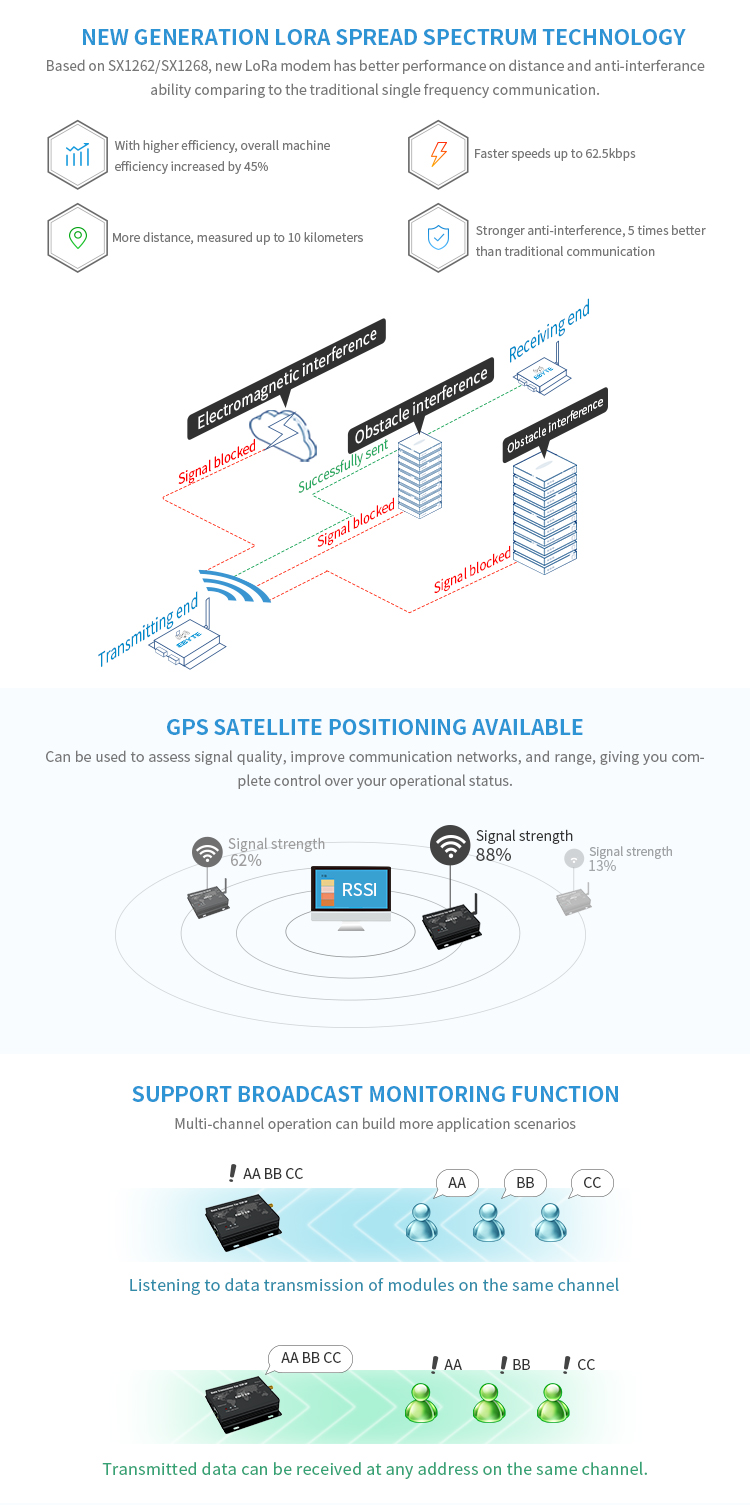

23	Modulation method	New generation LoRa
