Elecbee LORA6500PRO 5W Wireless Module Mesh Network with AES High Power Maximum Distance 15km Relay Networking

SKU: EB0046941

Favorites

Key Features

xa0

Transmission distance in open area up to 15000meters @ 91bps

433/470/868/915 MHz(Customizable)

AES128 Data encryption

MESH & Node working mode

40 channels

LoRa modulation

Interface: TTL/RS232/RS485

Sensitivity: -139 dBm

Max output power: 5W（+37dBm）

Working voltage: 3.3 ~ 6.5 V

Working temperature: -40 ~ +85 °C

LBT(Listen before talk)

Module can be as node and repeater at same time.

Specification:

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Bluetooth + LoRa

Wi‑Fi Standard

802.11B/G/N

Model

LORA6500PRO

USB Support

USB

Show Similar Products >

Shipping Guide

Shipping	Delivery Period	For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days
	Shipping Rates	Shipping rates for your order can be found in the shopping cart.
	Shipping Options	Shipping rates for your order can be found in the shopping cart.
	Shipping Tracking	We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/Warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
	Warranty	All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
		This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	How to Buy	Elecbee accepts online orders.
		Add to cart > Check out > Submit order > Complete payment > Delivery
	Payment	PayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Description

Description:

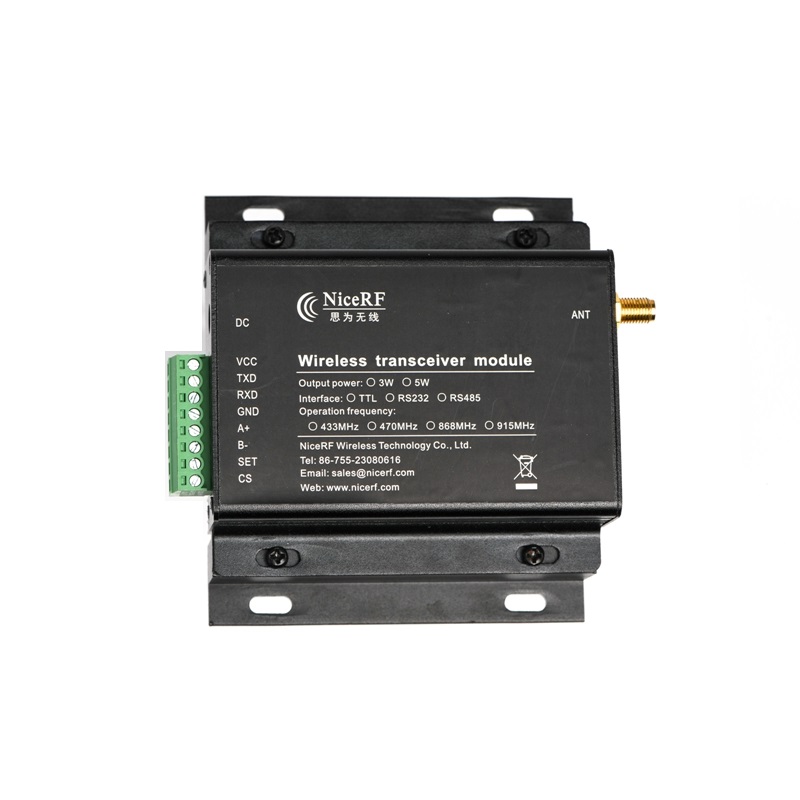

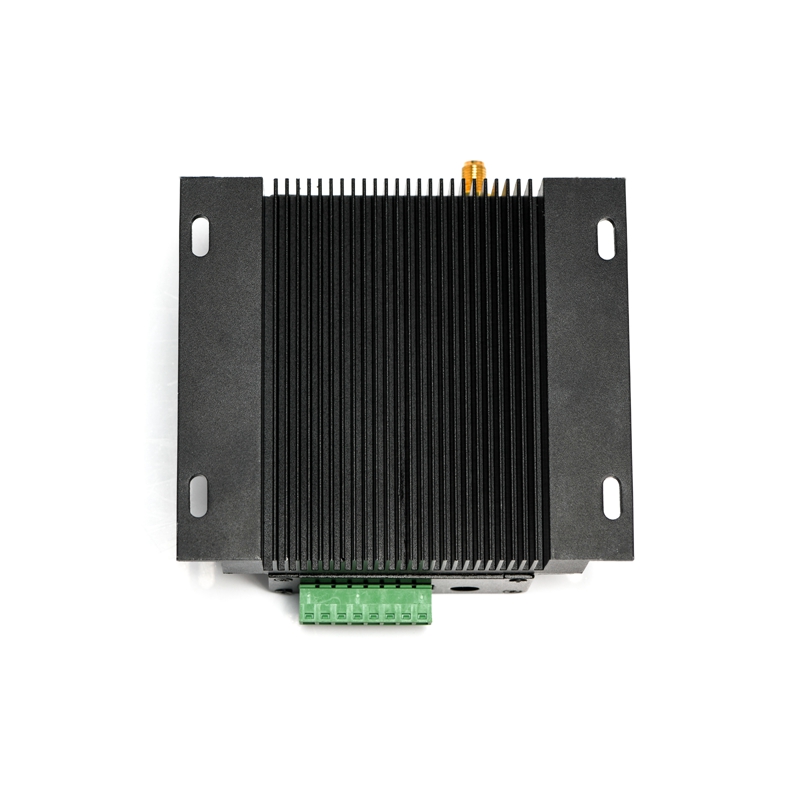

LoRa6500Pro is a small wireless transceiver data transmission module, based on SX1276/1278 chips from Semtech. This module adopts LoRa technology to achieve high effective sensitivity and superior anti-interference. The communication distance and receiver sensitivity are far exceeds the FSK, GFSK modulation. For better security, the module uses AES128 encryption. LoRa6500Pro has 5W output power and TTL/RS232/RS485 interface available. It is widely applied in meter reading, remote industrial control, etc

Note: The LoRaPro series can be work on different modes(according to the PC software settings), and they can communicate with NiceRF old version LoRa modules each other

Package includes:

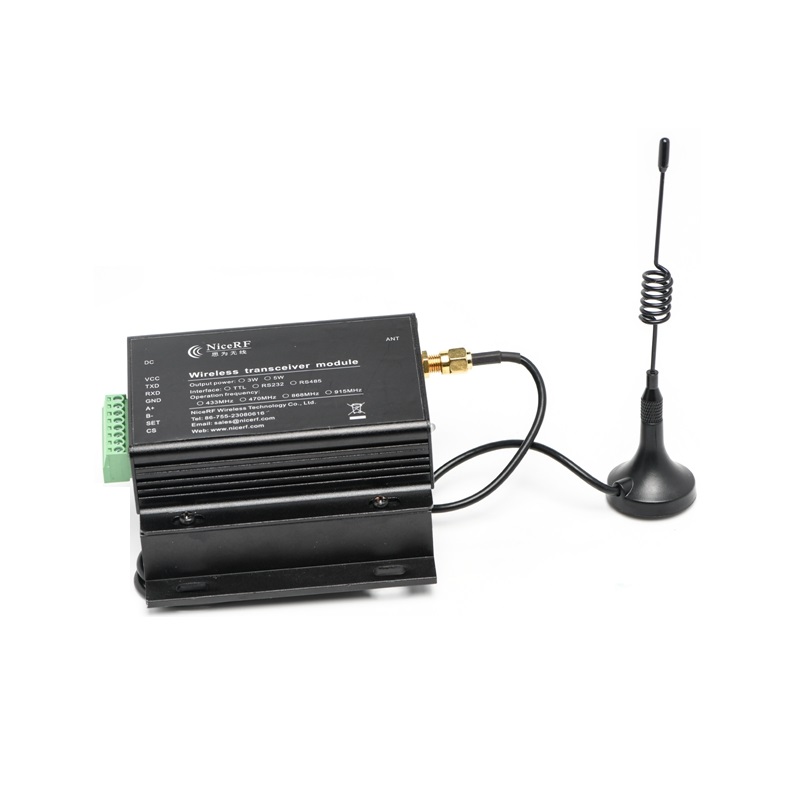

1 x LoRa6500pro-TTL-433 (Wireless RF Transceiver Module in TTL interface 433MHz 5W Network repeater rf module)

1 x SW433-XP1M (Wireless RF Sucker Antenna in 433 MHz with cable)

1 x SU108-TTL (TTL interface USB bridge board)
